Remote LED:MD111

Remote LED:MD111

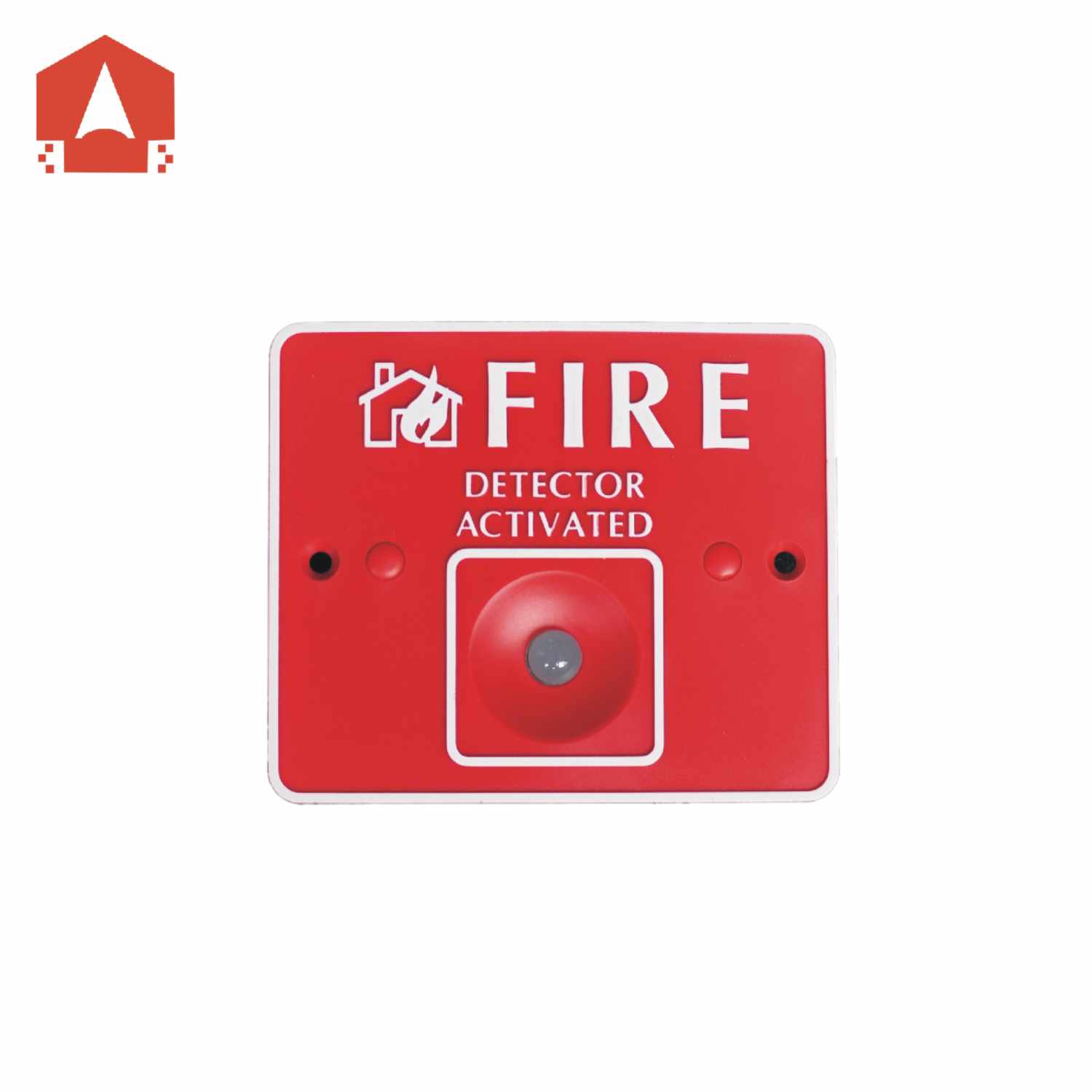

General Description

The device is remote LED uses a state of-the-art designs. This LED is designed to be used with detectors. One 8mm LED provide local 360° visible alarm indication. They flash with the same as detector that be connected.

Features and Benefits

  • Compatible with all the conventional fire alarm control panel
  • 8mm Big Size LED
  • Outside two holes provide 83mm(USA)
  • Inner two holes provide 59mm(Europe)
  • Wiring Terminals provided on the PCB board

Technical Specifications

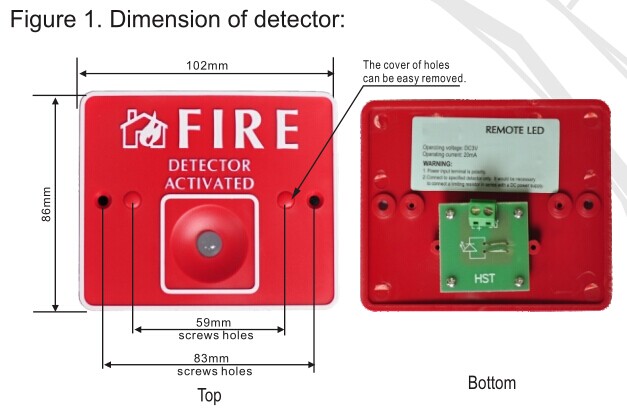

  • Dimension: 102X86mm
  • Height (including mounting base): 32 mm
  • Weight: 50 g
  • Operating Temperature Range: -10°C to 50°C
  • Operating Humidity Range: 10% to 93% Relative Humidity, Noncondensing
  • Latching Alarm: Reset by momentary power interruption
  • System Voltage (nominal): 3 VDC
  • Alarm Current: 20 mA @ 24VDC

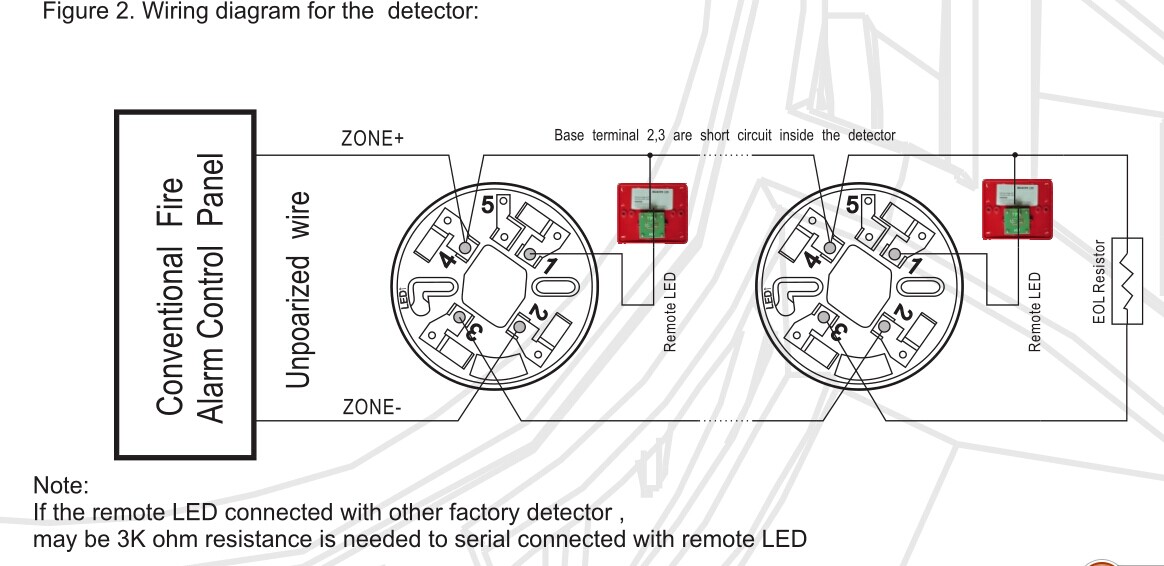

Installation Guidelines

All wiring must be installed in compliance with the Nationa Electrical Code, applicable state and local codes, and any special requirements of the local Authority Having Jurisdiction.
