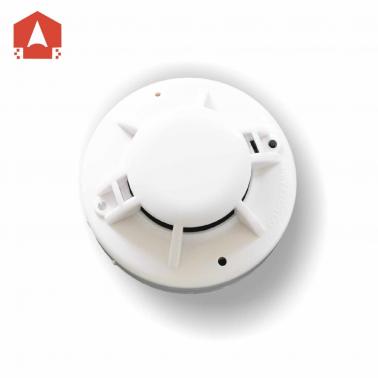

General Description

   The detector is a combined smoke and heat detector with photoelectronic sensor and heat thermistor together. This detector is designed to provide open area protection and to be used with most security alarm control panel. Two LEDs on each detector provide local 360° visible alarm indication. They flash every six seconds indicating that power is applied and the detector is working properly. The LEDs latch on in alarm. The detector can be reset only by a momentary power interruption. The detector that initiated the alarm condition will have its red LED and relays latched until reset by panel.The detector combine a photo electronic sensing chamber and a temperature heat detector.

Features and Benefits

  • Compatible with all the security alarm system
  • Alarm Relay Output(NO/NC can be adjustable)
  • Unpolarized wire input
  • Wide range of operating voltages(9V~28VDC)
  • Unique optical sensing chamber
  • Built in microprocessor intelligent software
  • Two LEDs blink standby, provide 360° visibility
  • Insect-resistant screening
  • Twist-on mounting base with tamper lock
  • Drift compensation and smoothing algorithms

Technical Specifications

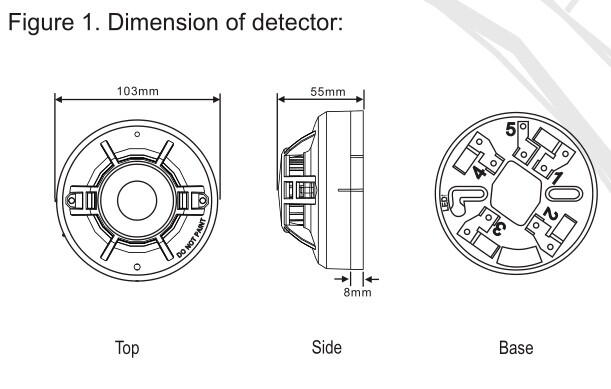

  • Diameter: 103mm
  • Height (including mounting base): 55 mm
  • Weight: 155 g
  • Operating Temperature Range: -10°C to 50°C.
  • Operating Humidity Range: 10% to 93% Relative Humidity, Noncondensing
  • Latching Alarm: Reset by momentary power interruption

Electrical Ratings

  • Power Supply Voltage: 12 VDC (9V~ 28VDC)
  • Standby Current: 200 μA@ 12VDC
  • Alarm Current: 45 mA @ 12VDC
  • Alarm Relay Contacts Rating: 2A@24VDC
  • Smoke Alarm Sensitivity: 1.06±.26%FT
  • Temperature Alarm Sensitivity: 57°C (135°F) A1R

Installation Guidelines

   All wiring must be installed in compliance with the National Electrical Code, applicable state and local codes, and any special requirements of the local Authority Having Jurisdiction.

4-Wire Smoke & Heat Detector with Relay Output FT1434-Wire Smoke & Heat Detector with Relay Output FT143

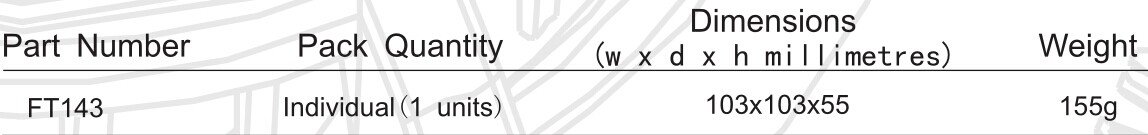

Ordering Information
