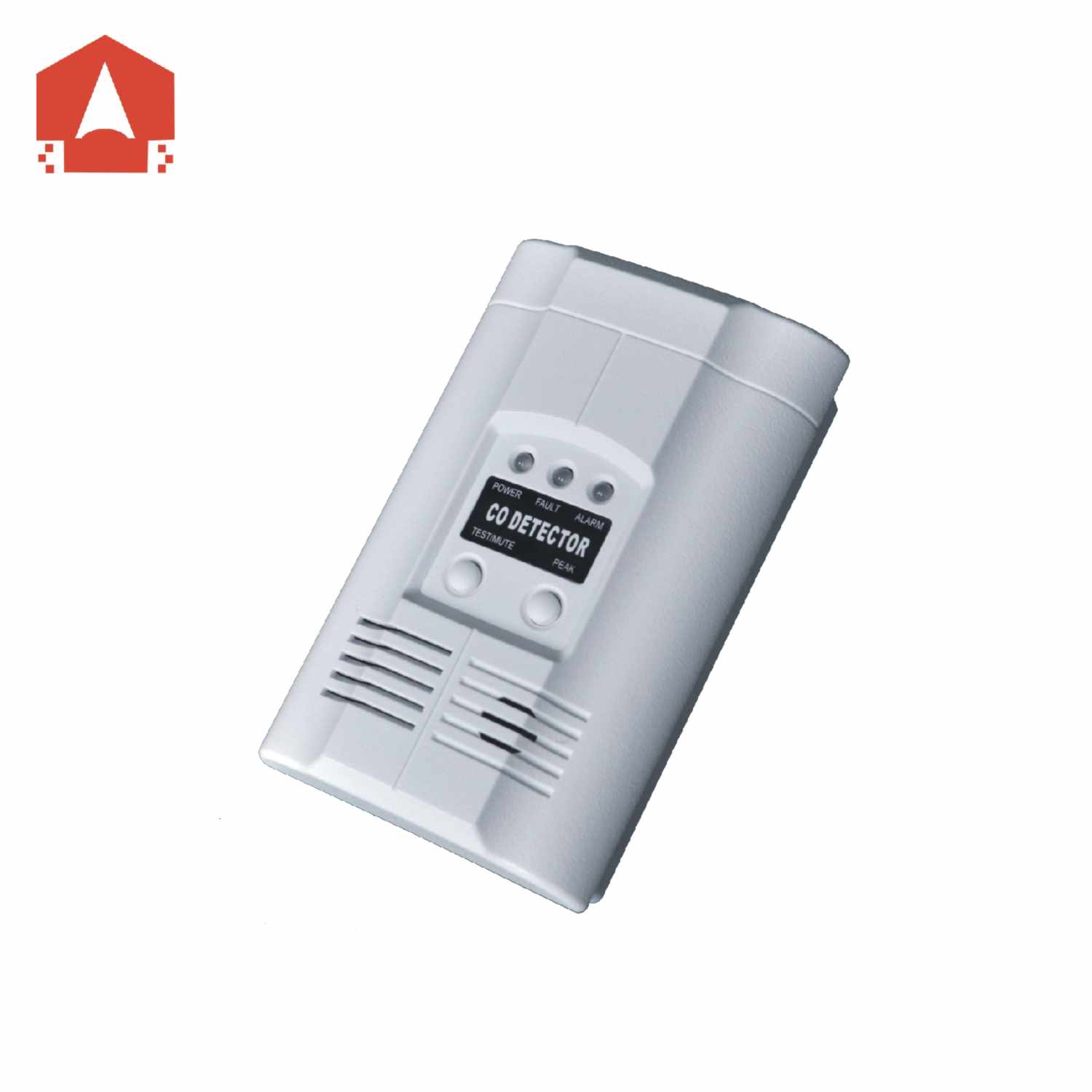

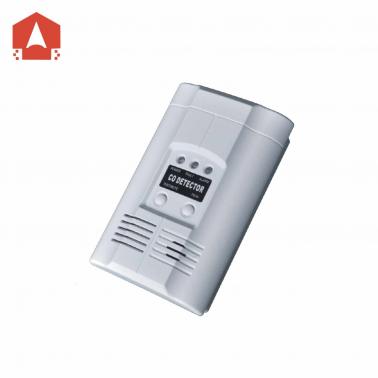

AC Powered Plug-In Gas & Carbon Monoxide Alarm

AC Powered Plug-In Gas & Carbon Monoxide Alarm


   The Alarm is an AC powered plug-in, carbon monoxide alarm that can be installed easily in any standard wall outlet. The carbon monoxide alarm uses advanced technology to monitor for carbon monoxide levels in your home and features the high precision sensor and world’s most accurate carbon monoxide sensing technology. This alarm has a clean, low profile design along with two LED’s;green for normal operation, yellow for fault alarm and red for alarm mode.

   The plug-in, 90-280VAC, carbon monoxide alarm provides you and your family with a warning signal to protect against dangerous levels of carbon monoxide in your home. This alarm is easily installed near any of your AC wall outlets. The green LED shows that AC power is present and the alarm is working properly. The red LED will illuminate when the alarm detects carbon monoxide and indicates that you and your family should move to fresh air. The alarm offers a 5 year limited warranty.

Features and Benefits

  • High sensitivity gas sensor - Electric chemical CO gas sensor makes gas detection more accurate and stable
  • Power Input - AC220V
  • Easy Installation - Mounts near to any wall outlet.
  • Loud 80dB - Alerts you of deadly CO gas
  • Self diagnostic function- by MCU intelligent software.
  • Quality Design - 5 year limited warranty.
  • Test/Reset Button - Tests the alarm electronics and resets the unit during alarm.
  • Power LED - Indicates alarm is receiving power and operating properly.
  • Alarm/Fault LED - Illuminates when in alarm/fault mode

Technical Specifications

  • Power Source: AC220V
  • Power Consumption: <1.5W(Standby), <3W(Alarm)
  • Sensitivity: 70 ppm CO concentration 60 – 240 minutes
                        150 ppm CO concentration 10 – 50 minutes
                        400 ppm CO concentration 4 – 15 minutes
  • Audio Alarm: 80dB at 10ft(3meters)
  • LED: Green, Normal; Red, Alarm; Yellow, Fault
  • Temperature Range: -10°C to 50°C
  • Humidity Range: 5%-95% relative humidity (RH)
  • Size: 76mm Width x 122mm Height x 38mm Depth
  • Weight: 265g

Installation of CO Alarm

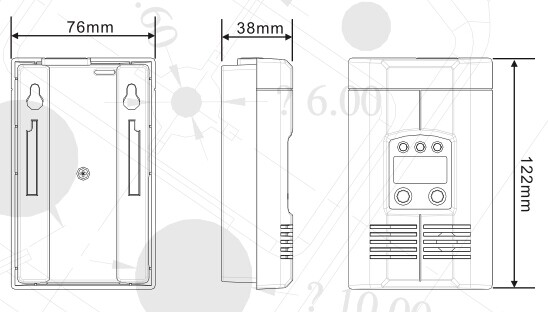

co alarm size
