Conventional Manual Call Point:SB106

Conventional Manual Call Point:SB106

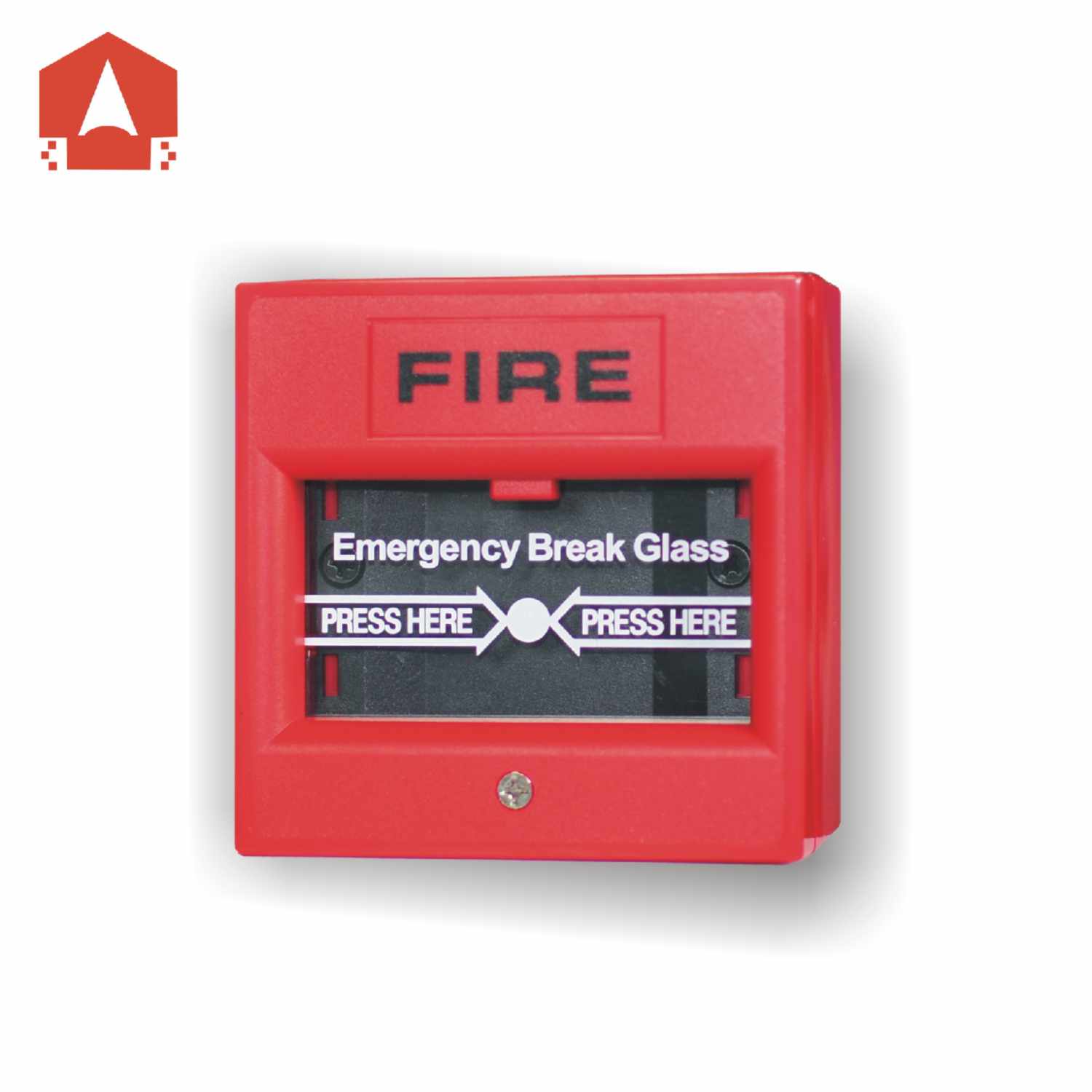

General Description

The conventional manual call point designed for conventional fire alarm system for reporting fire or emergency condition by pressing its breakable glass.  The manual call point can be test by a test key without breaking the glass.

Features and Benefits

  • Compatible with all the conventional fire alarm control panel
  • Can be reset by key
  • 470 Ohm resistance
  • Easy surface mounting Base included

Technical Specifications

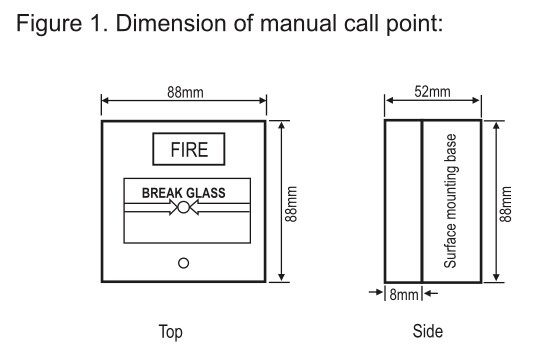

  • Dimension: 88mmX88mm
  • Height (including mounting base): 52 mm
  • Weight: 172 g
  • Operating Temperature Range: -10°C to 50°C
  • Operating Humidity Range: 10% to 93% Relative Humidity, Noncondensing
  • Latching Alarm: Reset by momentary power interruption

Electrical Ratings

  • System Voltage (nominal): 24 VDC (9V~ 28VDC)
  • Standby Current: 60 μA @ 24VDC
  • Alarm Current: 10~30 mA @ 24VDC

Installation Guidelines

All wiring must be installed in compliance with the Nationa Electrical Code, applicable state and local codes, and any special requirements of the local Authority Having Jurisdiction.

Conventional Manual Call PointConventional Manual Call Point

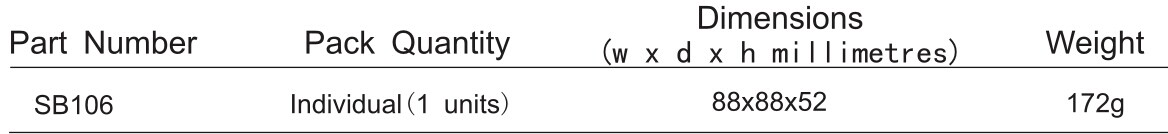

Ordering Information

Conventional Manual Call Point
