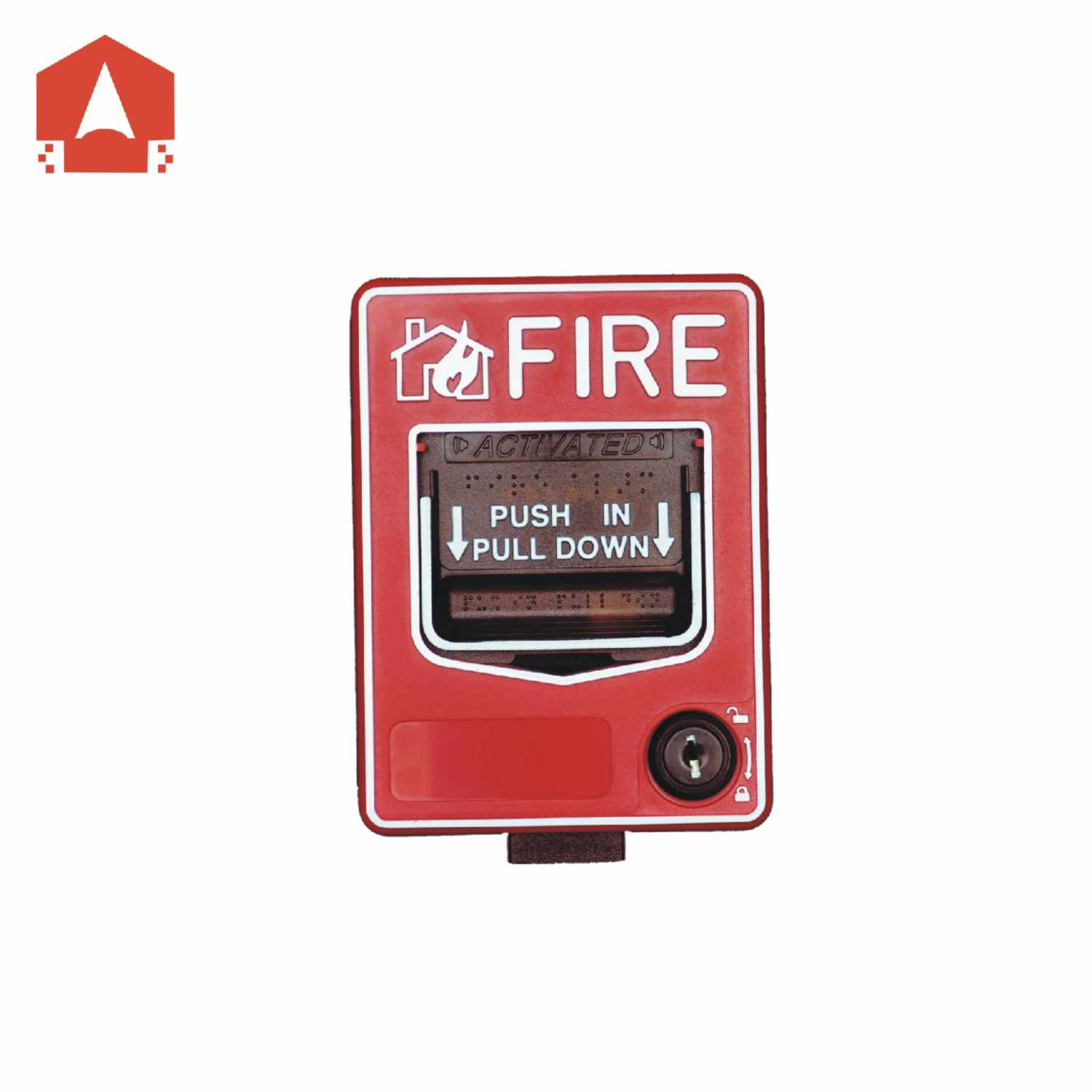

Conventional Manual Call Point:SB116

Conventional Manual Call Point:SB116

General Description

The conventional manual call point designed for conventional fire alarm system for reporting fire or emergency condition by pull down the plate. The manual call point can be reset by a special key without breaking the glass.

Features and Benefits

  • Compatible with all the conventional fire alarm control panel
  • Can be reset by key without use a new glass
  • 470 Ohm resistance
  • Easy surface mounting Base included

Technical Specifications

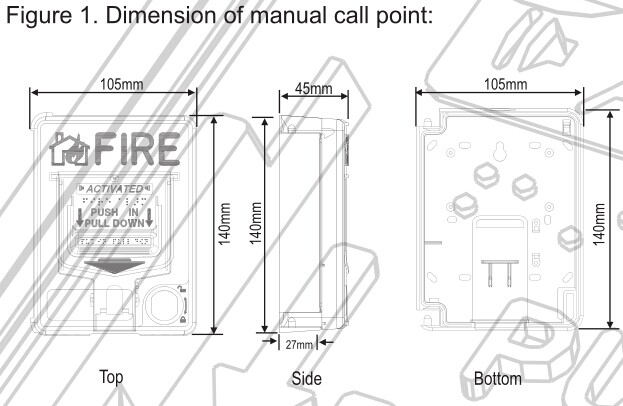

  • Dimension: 140mmX105mm
  • Height: 45 mm
  • Weight: 220 g
  • Operating Temperature Range: -10°C to 50°C
  • Operating Humidity Range: 10% to 93% Relative Humidity, Noncondensing
  • Latching Alarm: Reset by momentary power interruption

Electrical Ratings

  • System Voltage (nominal): 24 VDC (9V~ 28VDC)
  • Standby Current: 60 μA @ 24VDC
  • Alarm Current: 10~30 mA @ 24VDC

Installation Guidelines

All wiring must be installed in compliance with the Nationa Electrical Code, applicable state and local codes, and any special requirements of the local Authority Having Jurisdiction.

Conventional Manual Call Point:SB116Conventional Manual Call Point:SB116

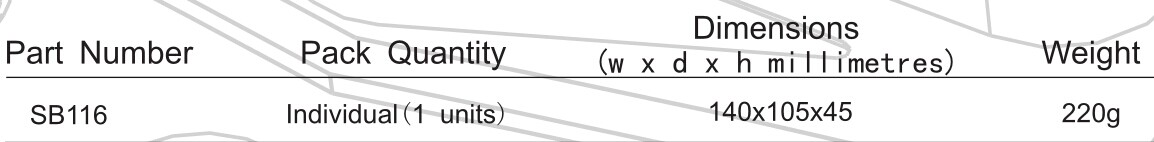

Ordering Information

Conventional Manual Call Point:SB116
